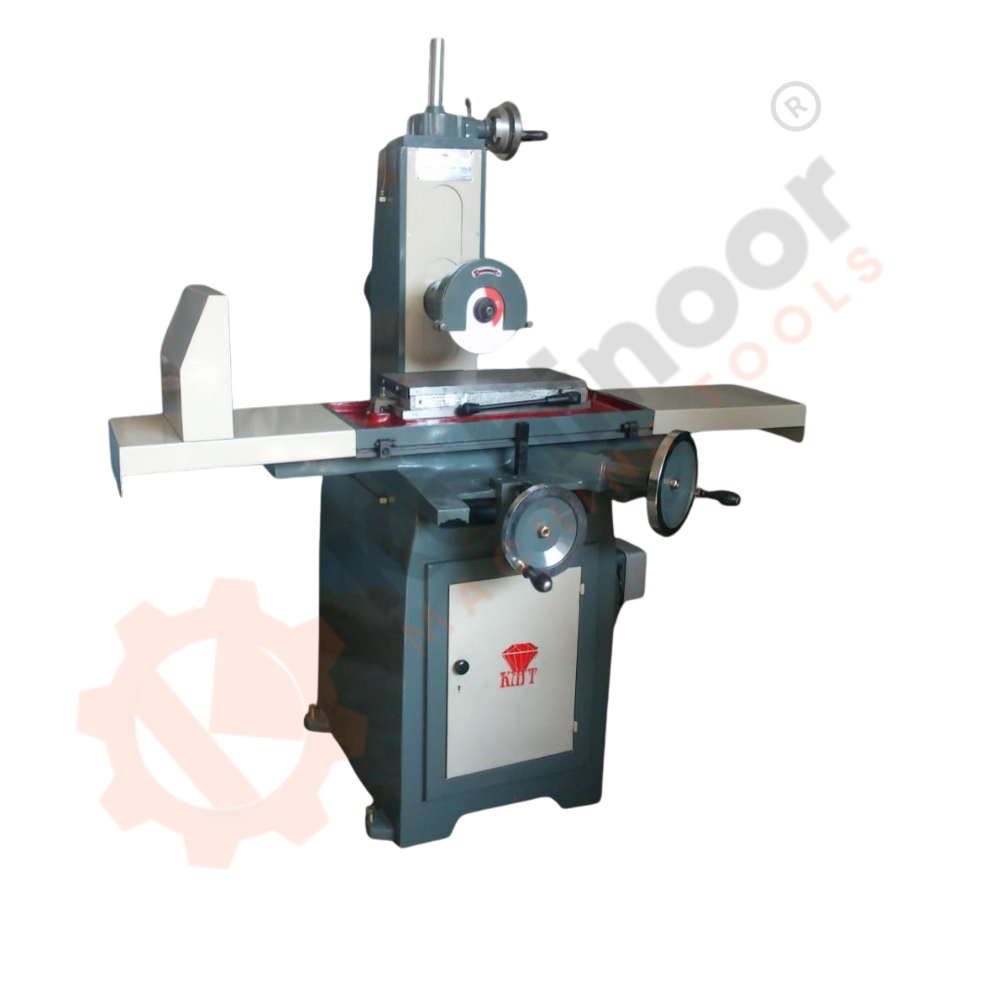

Surface Grinding Machine
Surface Grinding Machines( OIL DIP)
Kohinoor is a trusted name in the manufacturing of high-performance Oil Dip Machines, known for delivering precision, reliability, and long-lasting performance. With years of industry experience, Kohinoor has become a preferred choice for businesses seeking efficient oil dipping solutions for various industrial and commercial applications. Our machines are engineered to provide uniform and consistent oil coating, which is essential in enhancing product quality, reducing wastage, and maintaining process efficiency.
We use robust materials and advanced engineering techniques to ensure that every machine meets the highest standards of durability and operational excellence. Whether you require machines for small-scale operations or large industrial setups, we offer a wide range of customizable solutions to suit your specific needs.
At Kohinoor, we emphasize innovation, user-friendly design, and easy maintenance, making our Oil Dip Machines both efficient and economical. Our commitment to quality and customer satisfaction has helped us build a strong reputation across various industries including food processing, automotive, metal treatment, and more.
Partner with Kohinoor and experience the perfect combination of technology and craftsmanship. We don’t just build machines—we build long-term solutions to power your production with precision and performance.
🧾 Surface Grinding Machine – Model Specifications
| Model No. | KM-714 | KM-914 | KM-918 | KM-1020 | KM-1224 |
|---|---|---|---|---|---|
| Working Surface of Table | 175 x 350 mm | 225 x 350 mm | 225 x 450 mm | 250 x 500 mm | 300 x 600 mm |
| Max Height (Table to Wheel) | 250 mm | 275 mm | 275 mm | 300 mm | 300 mm |
| Vertical Feed Graduation | 0.01 mm | 0.01 mm | 0.01 mm | 0.02 mm | 0.02 mm |
| Cross Feed Graduation | 0.05 mm | 0.05 mm | 0.05 mm | 0.05 mm | 0.05 mm |
| Spindle Speed | 2800 RPM | 2800 RPM | 2800 RPM | 2800 RPM | 2800 RPM |
| Grinding Wheel Size | 175 x 13 x 31.75 mm | 200 x 13 x 31.75 mm | 200 x 13 x 31.75 mm | 200 x 20 x 31.75 mm | 200 x 20 x 31.75 mm |
| Magnetic Chuck Recommended | 150 x 300 mm | 200 x 300 mm | 200 x 450 mm | 200 x 500 mm | 200 x 500 mm |
| Diamond Dresser | 0.5 Cr | 0.5 Cr | 0.5 Cr | 0.5 Cr | 0.5 Cr |
| Electrical KW/HP (3 Phase) | 0.75 KW / 1 HP | 0.75 KW / 1 HP | 0.75 KW / 1 HP | 0.75 KW / 1 HP | 1.5 HP |
| Wheel Balancing Stand | One | One | One | One | One |
| Approx. Net Weight | 700 kg | 800 kg | 900 kg | 1000 kg | 1200 kg |

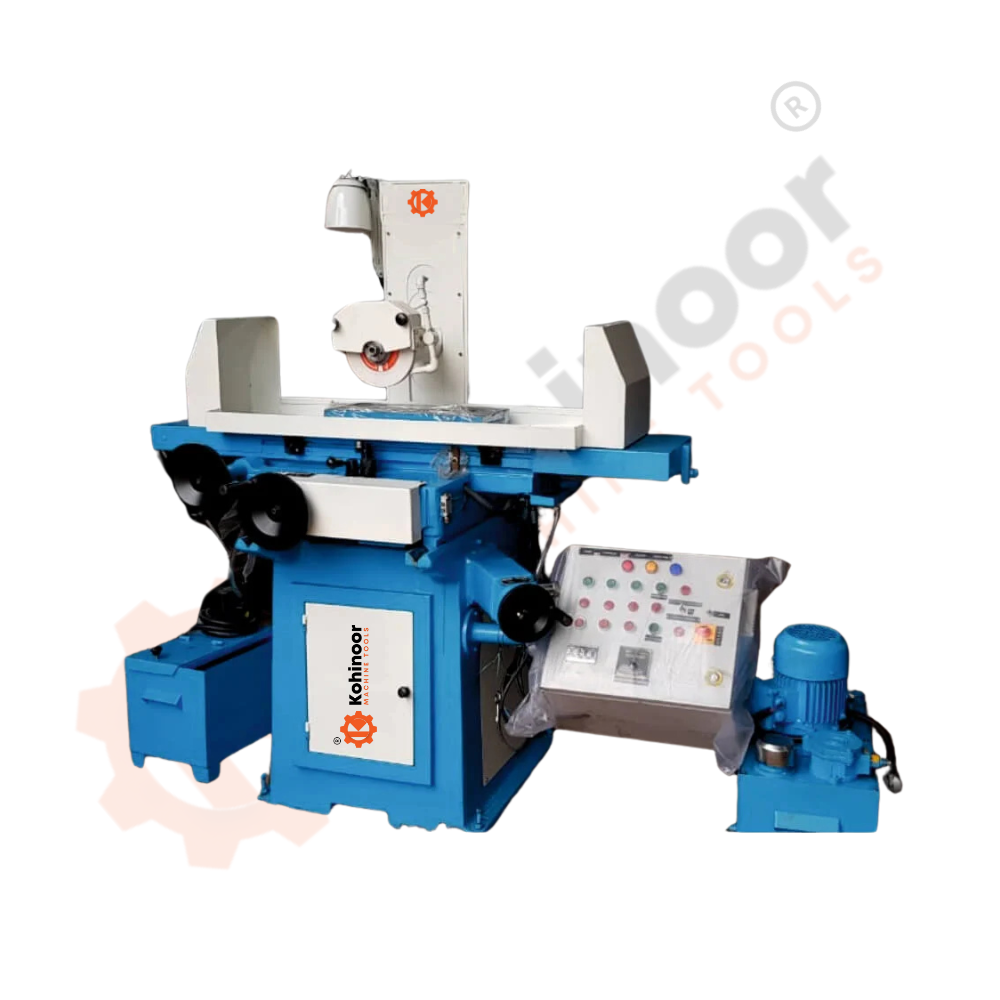

Hydraulic Machine (Ball Type)
Kohinoor is a leading manufacturer of high-precision Hydraulic Surface Grinding Machines, committed to delivering excellence in metal finishing and surface treatment. Designed with advanced hydraulic technology, our machines offer smooth, accurate, and efficient grinding performance, meeting the demands of modern industrial standards.
Our Hydraulic Surface Grinding Machines are ideal for a wide range of applications, including toolrooms, production shops, and heavy-duty manufacturing units. They are engineered for high rigidity, minimal vibration, and superior surface finish, ensuring consistent and repeatable results. With user-friendly controls and durable construction, Kohinoor machines are built to last and perform reliably even in demanding environments.
We provide machines in various sizes and configurations to accommodate the specific needs of our clients. Every machine is rigorously tested for quality, accuracy, and performance before delivery. At Kohinoor, we combine innovative design with practical functionality to deliver machines that enhance productivity and operational efficiency.
Customer satisfaction is our priority, and we offer complete support from installation and training to after-sales service. Choose Kohinoor for your hydraulic surface grinding needs and experience unmatched precision, quality craftsmanship, and long-term reliability.
🔧 Hydraulic Surface Grinding Machine – Technical Specification
| Specification | KMH-1224 | KMH-1530 |
|---|---|---|
| Table Size | 300 x 600 mm | 375 x 750 mm |
| Elevator Hand Wheel Graduation | 0.01 mm | 0.01 mm |
| Cross Feed Mechanism | Motorised | Motorised |
| Spindle Speed | 2800 RPM | 2800 RPM |
| Spindle Motor (KW/HP – 3 Phase) | 1.50 / 2.0 | 2.0 |
| Hydraulic Power Pack Motor (KW/HP) | 1.50 / 2.0 | 3.00 |
| Size of Grinding Wheel | 200 x 20 x 31.75 mm | 200 x 20 x 31.75 mm |
| Magnetic Chuck Size | 250 x 500 mm | 300 x 600 mm |
Â
🧰 Standard Accessories
Electric Motors & Starter
Electro Magnetic Chuck
Grinding Wheel Mounted
Diamond Dresser with Holder
Wheel Adopter Puller
Spanner for Wheel Change
Wheel Balancer with Mandrel
Coolant Supply System
Lubrication System
Machine Lamp
Note: Micro Feed System can be attached with vertical feed for maximum accuracy (optional accessory).

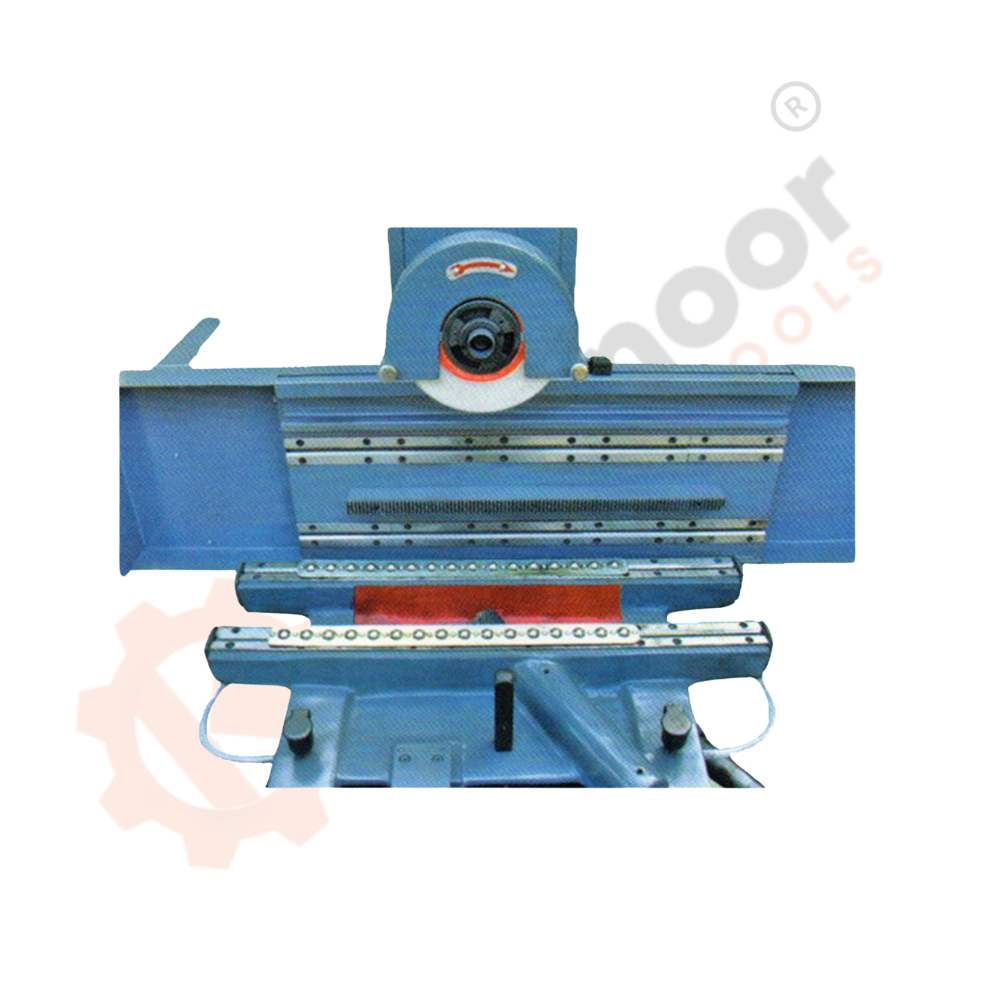

Surface Grinding Machines( Ball TYPE)
Kohinoor is a prominent manufacturer of high-quality Ball Type Machines, designed for precision, durability, and optimal performance. Our machines are widely used in various industries where accurate shaping, grinding, or forming of spherical components is essential. Built with robust materials and advanced engineering, Kohinoor Ball Type Machines deliver consistent performance even under heavy-duty operational conditions.
These machines are ideal for applications in automotive parts manufacturing, bearing production, and other engineering sectors that require precise ball shaping or finishing. The ergonomic design, combined with user-friendly controls and low maintenance requirements, makes them suitable for both small-scale workshops and large-scale industrial units.
At Kohinoor, we are committed to innovation and continuous improvement. Our Ball Type Machines feature high-quality components, efficient power usage, and a smooth operational mechanism, ensuring long service life and reduced downtime. We offer customized solutions tailored to your specific production requirements.
With a strong focus on customer satisfaction, we provide complete technical support, installation services, and reliable after-sales assistance. Kohinoor stands as a symbol of trust and engineering excellence. Partner with us for Ball Type Machines that deliver precision, efficiency, and long-term value for your manufacturing operations.
🧾 Surface Grinding BALL TYPE Machine – Model Specifications
| Model No. | KM-714 | KM-914 | KM-918 | KM-1020 | KM-1224 |
|---|---|---|---|---|---|
| Working Surface of Table | 175 x 350 mm | 225 x 350 mm | 225 x 450 mm | 250 x 500 mm | 300 x 600 mm |
| Max Height (Table to Wheel) | 250 mm | 275 mm | 275 mm | 300 mm | 300 mm |
| Vertical Feed Graduation | 0.01 mm | 0.01 mm | 0.01 mm | 0.02 mm | 0.02 mm |
| Cross Feed Graduation | 0.05 mm | 0.05 mm | 0.05 mm | 0.05 mm | 0.05 mm |
| Spindle Speed | 2800 RPM | 2800 RPM | 2800 RPM | 2800 RPM | 2800 RPM |
| Grinding Wheel Size | 175 x 13 x 31.75 mm | 200 x 13 x 31.75 mm | 200 x 13 x 31.75 mm | 200 x 20 x 31.75 mm | 200 x 20 x 31.75 mm |
| Magnetic Chuck Recommended | 150 x 300 mm | 200 x 300 mm | 200 x 450 mm | 200 x 500 mm | 200 x 500 mm |
| Diamond Dresser | 0.5 Cr | 0.5 Cr | 0.5 Cr | 0.5 Cr | 0.5 Cr |
| Electrical KW/HP (3 Phase) | 0.75 KW / 1 HP | 0.75 KW / 1 HP | 0.75 KW / 1 HP | 0.75 KW / 1 HP | 1.5 HP |
| Wheel Balancing Stand | One | One | One | One | One |
| Approx. Net Weight | 700 kg | 800 kg | 900 kg | 1000 kg | 1200 kg |
